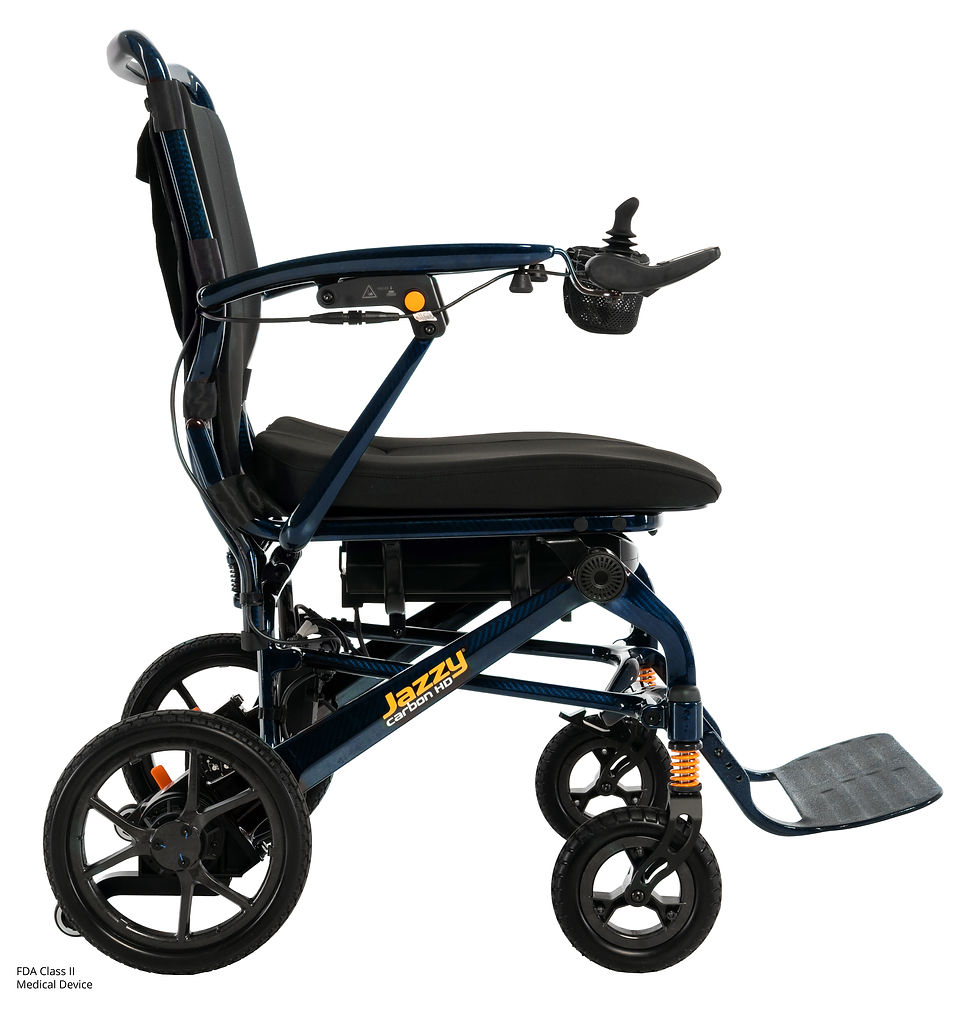

Pride Mobility Jazzy Carbon HD FDA Class II Medical Device*

CATEGORY	SPECIFICATION
Model	Jazzy® Carbon HD
Weight Capacity	400 lbs.
Maximum Speed1	Up to 3.7 mph
Ground Clearance3	1" at motor
Turning Radius3	36.4"
Overall Length3	36.81"
Overall Width3	26.4"

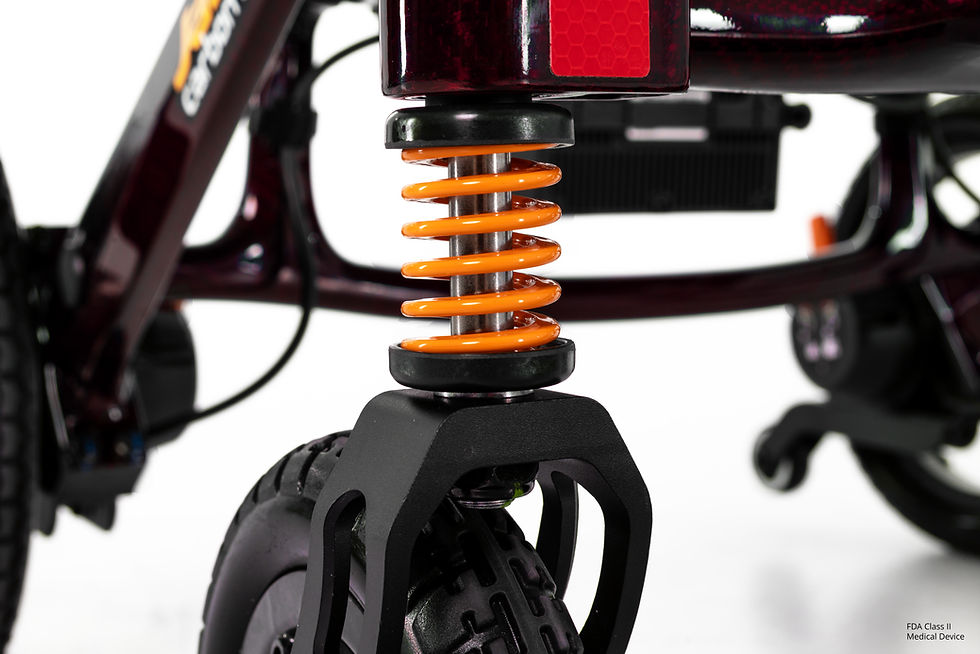

Suspension	Full Front and Rear Suspension
Front Wheels	6.5"
Rear Wheels	10.6"
Range per Charge1,2	Up to 12.4 Miles per charge
Product Weight Without Batteries3,5	32.2 lbs. without batteries
Standard Seating3	Dimensions: 20" x 20" seat Seat sling with removable cushion
Folded Dimensions	31.3" L x 26.4" W x 13" H
Drivetrain/Motor Output	24V 250W Brushless motors
Braking System	Regenerative and electromechanical
Battery Requirements	Type: Lithium battery box Size 20 Ah
Battery Weight4	7.5 lbs.
Battery Charger	2 Amp
HCPCS Codes	K0899 Power Mobility Device, not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply.
Warranty	Frame: 5-year Electronics: 1-year limited Drivetrain: 1-year limited Battery: 1-year limited

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

• Product Stability & Brakes Effectiveness Tests
• Fatigue & Impact Strength Verification Tests
• Overall Product Performance Verification
• Dimensional Requirement Compliance
• Product Durability & Reliability Testing
• Material Protective Coating Testing Verification
• Misuse and Abuse Testing
• Ergonomic Verification
• Environmental Testing for Adverse Weather Operation Conditions
• Electronic Systems Performance and Durability
• Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
• Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
• UL94VO Flammability Testing for Compliance of Plastic Components
• Electromagnetic Compatibility (EMC)

Warranty

• Lifetime limited on frame
• 1-year on drive motors
• 1-year on electronics
• 13-months on battery
