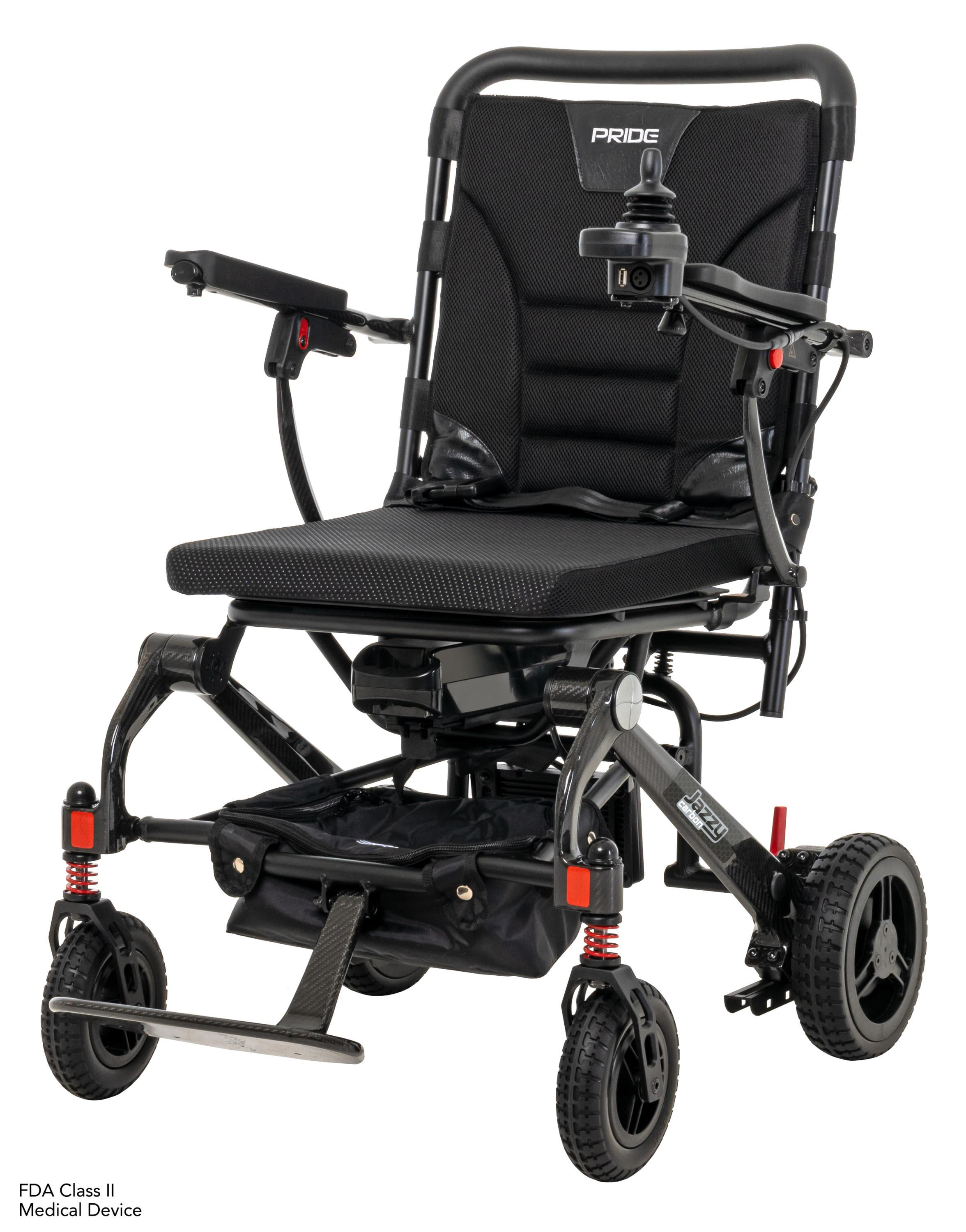

Pride Mobility Jazzy Carbon FDA Class II Medical Device*

Pride Mobility Jazzy Carbon FDA Class II Medical Device*

With carbon fiber technology, the Jazzy® Carbon Power Wheelchair becomes your greatest travel companion.
You know Jazzy® for its industry-leading performance and quality. Now let’s talk about portability.
Jazzy® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.
Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.
Weighing in at a stunning 43.6 pounds, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.

  • Specifications

    CATEGORY SPECIFICATION
    Model

    Jazzy® Carbon
    Weight Capacity 300 lbs.
    Turning Radius1 24"
    Maximum Speed1 Up to 3.7 mph
    Ground Clearance3 2"
    Overall Length3 37"
    Overall Width3 24"
    Seat-to-Ground Height 19"
    Seat-to-Foot Platform Height 14.5" (no adjustment)
    Front Wheels 7"
    Rear Wheels 8.5"
    Seat-to-Floor Range with Standard Cushion 20.75"
    Seat-to-Floor Range without Cushion 18.75"
    Power Elevating Seat NA
    Seat Weight(s) NA
    Battery Sizes 24V 12AH (288WH)
    Suspension Front
    Total Weight Without Batteries3,5 39 lbs.
    Total Weight With Batteries3,5 43.6 lbs.
    Heaviest Piece When Disassembled3 N/A
    Standard Seating Material: Black, Foam
    Dimensions: 17" x 17"
    Maximum Seat Size 17" x 17"
    Per Charge Range Up to 9.3 miles
    Drivetrain 24v/250W Brushless motors
    Standard Electronics 35A Brushless Micon
    HCPCS Codes Non-coded: K0899
    Braking System Regenerative and electromechanical
    Battery Weight4 4 lbs.
    Battery Charger Off-board, 2-amp lithium-ion
    Weight of Heaviest Piece NA unit folds and doesn't disassemble
    Warranty Frame: Lifetime limited;
    Drivetrain: 1-year limited;
    Electronics: 1year limited;
    Batteries: 1-year limited

  • Testing Standards and Warranty

    Meeting and Exceeding High Standards for your Peace of Mind.

    Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

    Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

    The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

    The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

    All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

    Some of the items our testing criteria include are:

    • Product Stability & Brakes Effectiveness Tests
    • Fatigue & Impact Strength Verification Tests
    • Overall Product Performance Verification
    • Dimensional Requirement Compliance
    • Product Durability & Reliability Testing
    • Material Protective Coating Testing Verification
    • Misuse and Abuse Testing
    • Ergonomic Verification
    • Environmental Testing for Adverse Weather Operation Conditions
    • Electronic Systems Performance and Durability
    • Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
    • Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
    • UL94VO Flammability Testing for Compliance of Plastic Components
    • Electromagnetic Compatibility (EMC)

    Warranty

    • Lifetime limited on frame;
    • 1-year limited on electronics;
    • 1-year on drive motors
    • 1- limited on batteries.

    https://www.pridemobility.com/pdf/owners_manuals/us_jazzy/us_jazzy_carbon_om.pdf
