Pride Mobility Jazzy Carbon 27X FDA Class II Medical Device*

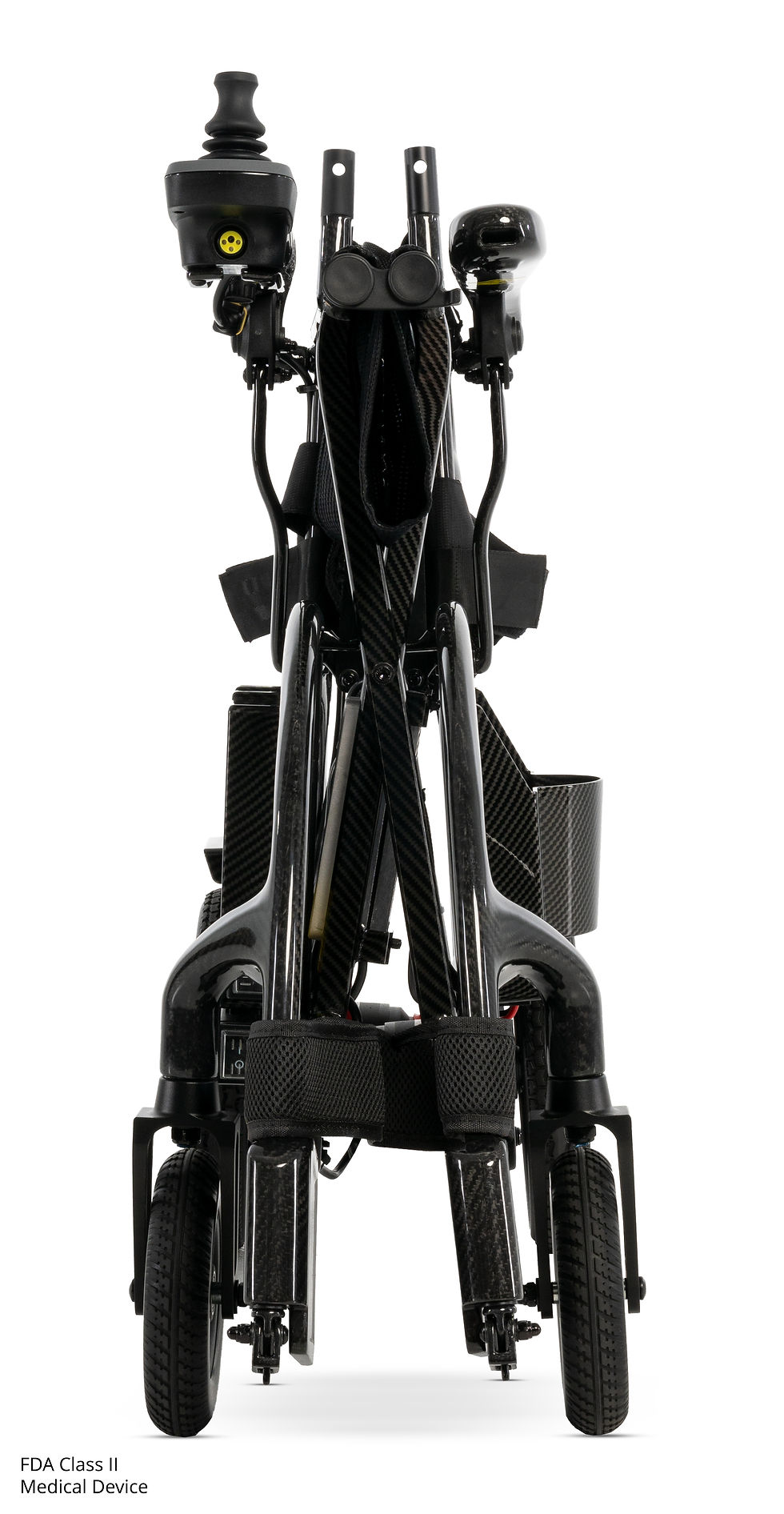

The Jazzy® Carbon 27X is a power wheelchair that folds vertically thanks to its innovative X-frame design. Weighing in at approximately 27.5 lbs. without the battery, it’s the ideal mobility device for journeys near and far. The strong carbon fiber frame makes it durable, portable, and safe so you can discover your independence and travel worry-free.
Specifications
CATEGORY SPECIFICATION Model Jazzy® Carbon 27X
Weight Capacity 275 lbs. Maximum Speed1 Up to 3.7 mph Ground Clearance3 3" Turning Radius3 35.4" Overall Length3 41" Overall Width3 23" Suspension Full Front and Rear Suspension Front Wheels 7" Rear Wheels 10" Range per Charge1,2 Up to 8 Miles per charge Product Weight Without Batteries3,5 27.5 lbs. without batteries Standard Seating3 Cushioned back with removable seat cushion Folded Dimensions 34" L x 12" W x 30" H Drivetrain/Motor Output> 24V 150W Braking System Regenerative and electromechanical Battery Requirements6 24V 10Ah Battery Weight4 3.5 lbs. Battery Charger 3.5 Amp HCPCS Codes K0899 Power Mobility Device, not coded by DME PDAC.
DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply.Warranty Frame: 5-year limited
Drivetrain: 13-month limited
Electronics: 13-month limited
Battery: 13-monthWarranty
-
Warranty
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes Effectiveness Tests
- Fatigue & Impact Strength Verification Tests
- Overall Product Performance Verification
- Dimensional Requirement Compliance
- Product Durability & Reliability Testing
- Material Protective Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for Adverse Weather Operation Conditions
- Electronic Systems Performance and Durability
- Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
- UL94VO Flammability Testing for Compliance of Plastic Components
- Electromagnetic Compatibility (EMC)
Warranty
- Lifetime limited on frame
- 1-year on drive motors
- 1-year on electronics
- 13-months on battery
https://www.pridemobility.com/pdf/owners_manuals/us_jazzy/us_jazzy_ultra_light_om.pdf
-
